MADE IN AUSTRALIA
| Technical Summary | |
| Specification | Details |
| Observatory Size | 1.5m Wide × 1.5m Long |
| Overall Size | 1.66m Wide × 3.58m Long (4.3m including front rail overhang) |
| Wall Height | 1.315m High |
| Roof Height (Internal) | 1.75m Low End 1.85m High End |
| Frame Material | Aluminium |
| Cladding | Aluminium composite panel |
| Roof Type | Motorised roll-off |
| Drive System | High-torque stepper motor with gear reducer and helical rack |
| Control System | Starling Observatory Control System |
| Weather Monitoring | CloudWatcher and CloudWatcher Solo by Lunático - Not Included |
| Safety Features | Dual limit switches, capable of automatic weather-triggered closure |
| Power Requirements | Standard 240 V AC supply |
| Installation | Delivery and installation POA |
| Made In | Australia |
Smart automation. Precision engineering. Reliable performance.
The AstroworX 1.5 m × 1.5 m Roll-Off Roof Observatory is a complete, self-contained observatory system — designed and manufactured in Australia for universities, schools, research organisations, and advanced private users. Combining robust construction with intelligent automation, it provides a durable, weather-protected platform for astronomy, imaging, and research applications.
Built from a precision-engineered aluminium frame and clad with aluminium composite panels, this observatory offers exceptional structural integrity and long-term resistance to harsh environmental conditions. Its compact 1.5 m × 1.5 m design provides a practical, professional-grade observatory space suitable for both permanent and remote installations.

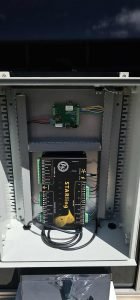

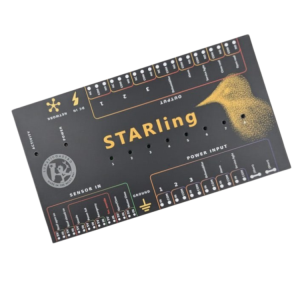

Powered by the Starling Observatory Control System, the observatory offers seamless remote operation, environmental monitoring, and roof automation. Users can manage their observatory from anywhere through a secure, web-based interface.
The Astroworx 1.5m x 1.5m ROR Observatory is easly integrated with the CloudWatcher Solo by Lunático, the system operates 24/7 to monitor sky conditions. The CloudWatcher Solo’s built-in web server delivers live environmental data and automatically closes the roof during adverse weather, ensuring complete equipment protection.

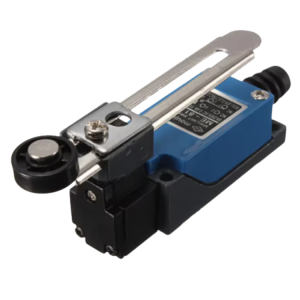

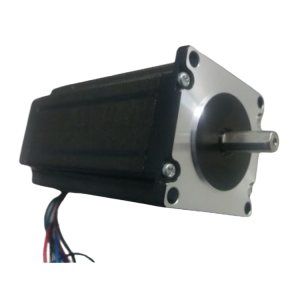

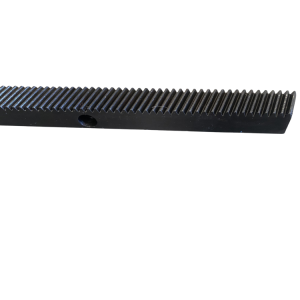

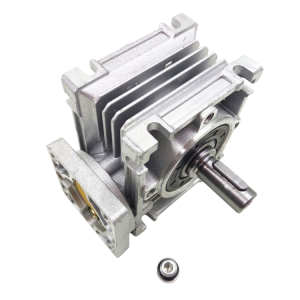

The roof drive system incorporates a high-torque stepper motor, gear reducer, helical rack drive, and limit switches for smooth, precise, and reliable roof motion.
This observatory is purpose-built for organisations seeking a reliable, locally supported automation solution. From research-grade projects to STEM education programs, the AstroworX Roll-Off Roof Observatory delivers professional capability in a compact, Australian-made system.
This product is sold as a complete observatory structure and automation system. Delivery and installation are not included and are priced on application (POA).
For pricing, delivery options, or installation availability, please contact AstroworX Engineering for a tailored quotation.
AstroworX Engineering — Smarter Observatories. Australian Made.
Full specifications are in the overview. Need a datasheet or drawing? Send an enquiry and we’ll email it.
Datasheets, drawings and 3D models are available on request.
Ask us for current lead times and delivery options to your site — we’ll include them with your quote.
We fully support our designs and installations. Talk to the team on 1300 930 730, Mon – Fri, 9am – 5pm.
Need something different? Every Astroworx product is designed and machined in-house, so sizes, fittings and finishes can be tailored to your setup.
